| Product Number | Conductor | Insulation | Spiral or braiding Shield | Jacket | Max. Cond. Resistance(20ºC)Ω/km |
| Size AWG | No./mm | Conductor Dia. mm | Nom. Thickness mm | Nom. Dia. mm | No./mm | Nom Dia.mm | Nom. Thickness mm | Nom. Dia. mm |
| HT1354**001 | 28 | 7/0.127 | 0.38 | 0.28 | 0.95 | 32/0.1 | 1.15 | 0.3 | 1.75 | 223 |
| HT1354**002 | 26 | 7/0.16 | 0.48 | 0.36 | 1.2 | 40/0.1 | 1.4 | 0.3 | 2 | 140 |
| HT1354**003 | 24 | 7/0.203 | 0.61 | 0.4 | 1.4 | 46/0.1 | 1.6 | 0.4 | 2.4 | 87.6 |
Construction
Core Number: Consists of two or more conductors, twisted pairs or groups of twisted conductors twisted together. The conductors or groups of conductors may be laid parallel forming a flat, oval or round cable.
Conductor : Solid or Stranded
Insulation: PVC,PE, SRPVC, PP
Shield or Braid: Optional
Jacket: PVC
Application:Internal wiring of electronic equipment and appliances
Standards
International: UL758 , UL1581, UL2556
RoHS,REACH Compliant,
Technical data
Rated voltage:600 V
Rated Temperature:-40ºC-105ºCFlame: VW-1, FT1, FT2
Oil resistance: 60 ºC or 80 ºC Oil
Voltage withstand test:AC 2.5kV/1min
Printing :E258652 AWM STYLE 2501 AWGXX 105ºC 300V VW-1 ---c AWM I A/B 105ºC 300V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.

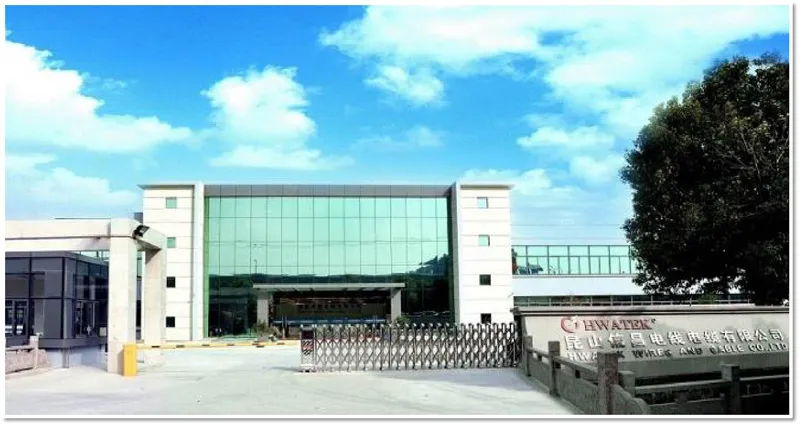

Company Profiles
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certificates

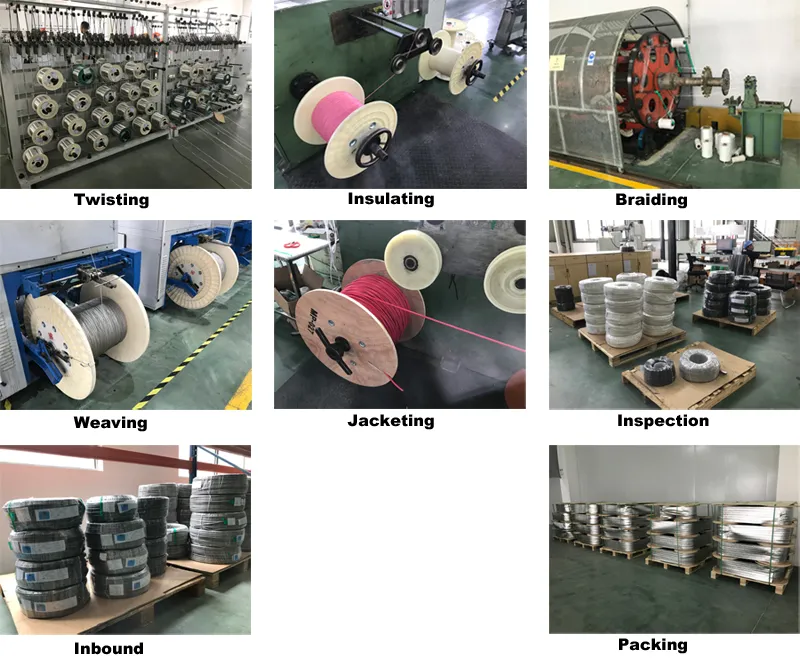

Production Progress
Shipping
FAQ
1.Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2.Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3.Q:Can we get samples before ordering?
A:Yes, we are willing to arrange samples for you.
4.Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5.Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
Major Customers
